Switchblade Controllers
Take command of your productions
Tactile control panels are essential tools in most television studios, streaming studios, and mobile production vehicles. Switchblade offers a wide range of cost-effective controllers supporting from 8 to 48 channels. With vMix at their core, most Switchblade control surfaces also support other hardware and software switchers, such as Blackmagic ATEM, Vizrt TriCaster, and OBS software.
SWITCHER CONTROL SURFACES
VMC24
$4,995
The Switchblade VMC24 is our largest control surface, designed for multi-camera productions with up to 48 channels. It features 24 cross-points with a shift key to access another 24 channels, as well as dedicated sub-mix buttons, 6 mix control buttons, 4 DSK control buttons, PTZ joystick, heavy-duty T-bay, and video clip playback controls. The VMC24 is easily powered from a single USB cable connected to the host switcher.
VMC20
$2,495
The VMC20 is our most advanced switching panel, featuring direct access to 20 channels of program and preview with customizable OLED displays for each channel, plus the ability to control another 20 channels through a shift function. The VMC20 also features the powerful N-Keys section with 20 assignable buttons that can trigger commands in software various applications. The VMC20 supports vMix through a USB connection or Blackmagic ATEM switchers over LAN.
VMC12 PLUS
$1,595

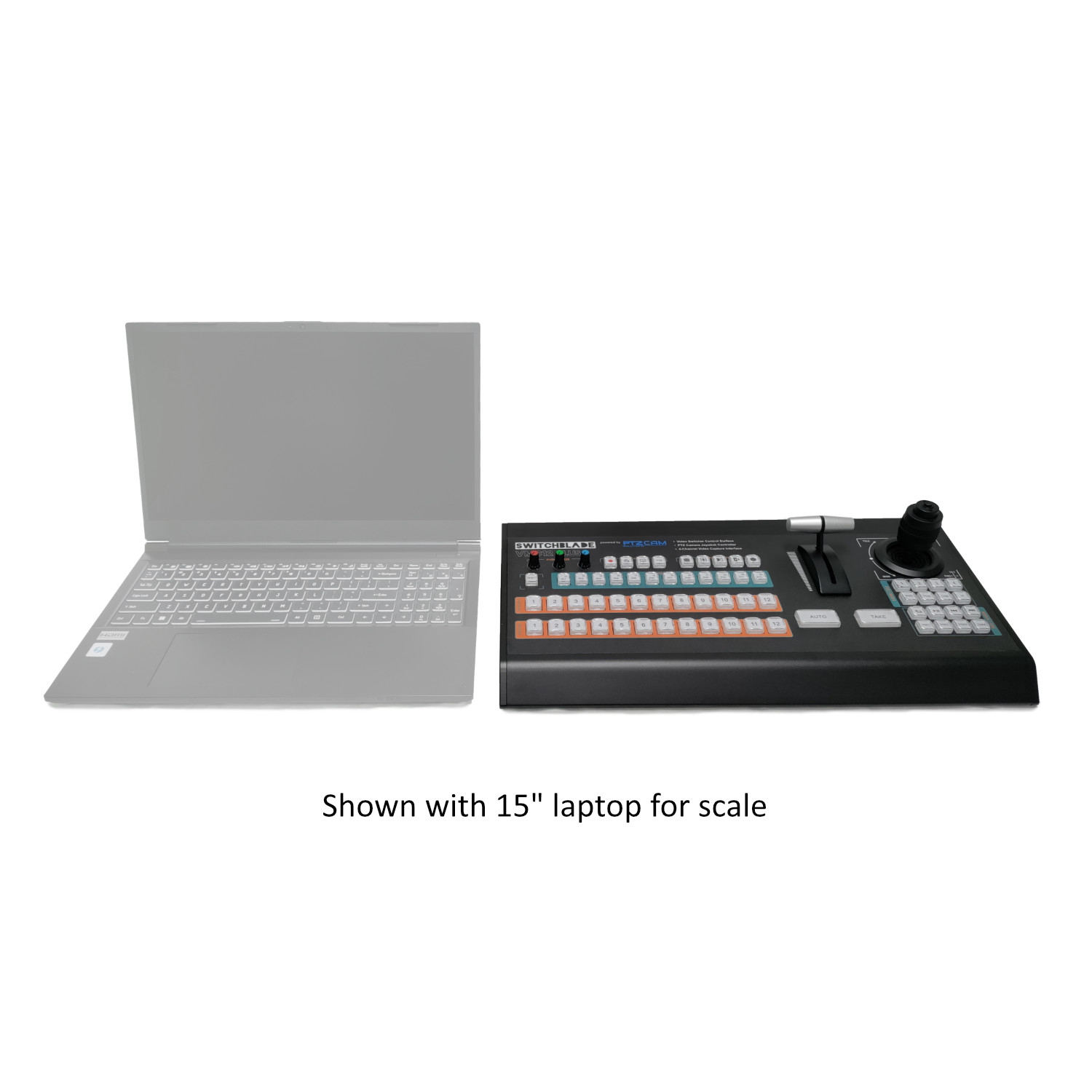

The VMC12 PLUS combines three devices into one: First, it’s a 12-channel switcher control panel for vMix. It also sports a high-quality PTZ camera control joystick with dedicated preset buttons. Finally, around back there are 4 HDMI video inputs to capture cameras or other sources into vMix. An HDMI output and two USB 3.0 ports provide additional connectivity to monitors and other peripherals. Connect the VMC12 PLUS to an Thunderbolt 3 or 4 compatible PC such as the Switchblade Splyce or Flyte to create a complete production studio!
VMC12 PRO
$695
The VMC12 PRO combines a 12-channel control panel and PTZ controller into a single rugged and compact device. Setup and configuration are simple with only a USB port to connect to your host computer and a configuration file loaded into vMix. The PTZ joystick can access any PTZ camera that is visible to vMix (vMix 4K or Pro required), while camera preset buttons and video clip player controls keep your productions flowing smoothly.
VMC12
$695
Although lacking the PTZ controls of the VMC12 PRO, the VMC12 offers vMix, ATEM, and OBS control in one small, lightweight panel. The built-in LED display makes setup a breeze, while the 5 rotary encoder knobs control audio levels. Like it’s bigger sibling the VMC20, the VMC12 has both USB and LAN connectivity and can be powered over USB, external adapter, or PoE.
VMC8
$399
As the smallest of the Switchblade controller line-up, the diminutive VMC8 makes a great entry point into the realm of live switching. This tiny, USB-powered control panel capably handles 8 channels of vMix inputs, plus 4 audio level knobs, transition slider, wipe control buttons, clip playback, recording, streaming, and cut/auto buttons. Throw the VMC8 and a laptop into your backpack and you’ve got a super-portable production system to take anywhere!
REPLAY CONTROL SURFACES
RP400
The Switchblade RP400 serves as a four-channel replay and slow-motion controller designed for vMix Replay. This sleek desktop unit features a T-bar for precise speed adjustments, a jog wheel for navigating the timeline, and various standard buttons for replay operations such as Clip In/Out, Play/Pause, dual rows of 1-4 Cam/Out, and four event shortcut buttons. It connects to a vMix host computer through USB, LAN, or an RS-232 serial cable.
RP800
When more then four cameras are needed, the Switchblade RP800 can operate up to eight inputs inside vMix Replay. Like it’s little brother the RP400, this compact desktop panel features a T-bar for precise speed adjustments, a jog wheel for navigating the timeline, and various standard buttons for replay operations such as Clip In/Out, Play/Pause, dual rows of 1-4 Cam/Out, and four event shortcut buttons. Connect to your vMix Replay host PC through USB, LAN, or an RS-232 serial cable.
Switchblade Control Surface Specifications
| Model | VMC24 | VMC20 | VMC12 PLUS | VMC12 PRO | VMC12 | VMC8 |
|---|---|---|---|---|---|---|
| Video Mixing | ||||||
| Number of Channels (Default) | 24 | 20 | 12 | 12 | 12 | 8 |
| Total Channels | 28 | 40 | 12 | 12 | 12 | 8 |
| Transition Bar | T-bar | Fader | ||||
| Transition Shortcuts | 11 | 6 | 5 | 5 | 5 | 4 |
| Audio Control | ||||||
| Audio Mixing Knobs | 3 | 5 | 3 | 3 | 5 | 4 |
| Camera Control | ||||||
| PTZ Control | ✓ | ✓ | ✓ | ✓ | ✕ | ✕ |
| Num. Cameras | ? | 40 | ? | ? | N/A | N/A |
| Num. Presets | ? | 9 | ? | ? | N/A | N/A |
| Protocols | VISCA | VISCA, VISCA-over-IP |
? | ? | N/A | N/A |
| Switcher & Software Compatibility | ||||||
| vMix | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| OBS Studio | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Blackmagic ATEM | ✕ | ✓ | ✕ | ✕ | ✓ | ✕ |
| Central Control | ✓ | ✕ | ✓ | ✓ | ✕ | ✓ |
| Connectivity | ||||||
| LAN (RJ-45) | ✕ | ✓ (ATEM & PTZ control only) |
✕ | ✕ | ✓ | ✕ |
| USB | ✓ | ✓ | ✓ | ✓ | ✓ (vMix only) | ✓ |
| Serial | RS-232 | RS-232, RS-422/485 |
RS-232 | RS-232 | ✕ | ✕ |
| Thunderbolt | ✕ | ✕ | ✓ | ✕ | ✕ | ✕ |
| Tally Lights | ||||||
| Num. Tally Lights | ? | 12 | 12 | 12 | N/A | |
| Tally Interface | Wireless | Wireless, Wired |
Wireless | Wireless | Wireless | ✕ne |
| Power | ||||||
| DC Input | ✓ | ✓ | ✓ | ✓ | ✓ | ✕ |
| USB | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| POE | ✕ | ✓ | ✕ | ✕ | ✓ | ✕ |
COMPLETE YOUR SOLUTION
Compatible products to build a complete workflow
- 8-channel portable switcher
- SDI, HDMI, and NDI inputs
- Built-in 17-inch monitor
- Pair with VMC12 PRO
- Tiny 4x4-inch switcher
- Up to 4x 3G-SDI inputs
- Supports NDI, RTMP, RTSP, and SRT network video sources
- Pair with VMC12 or VMC8

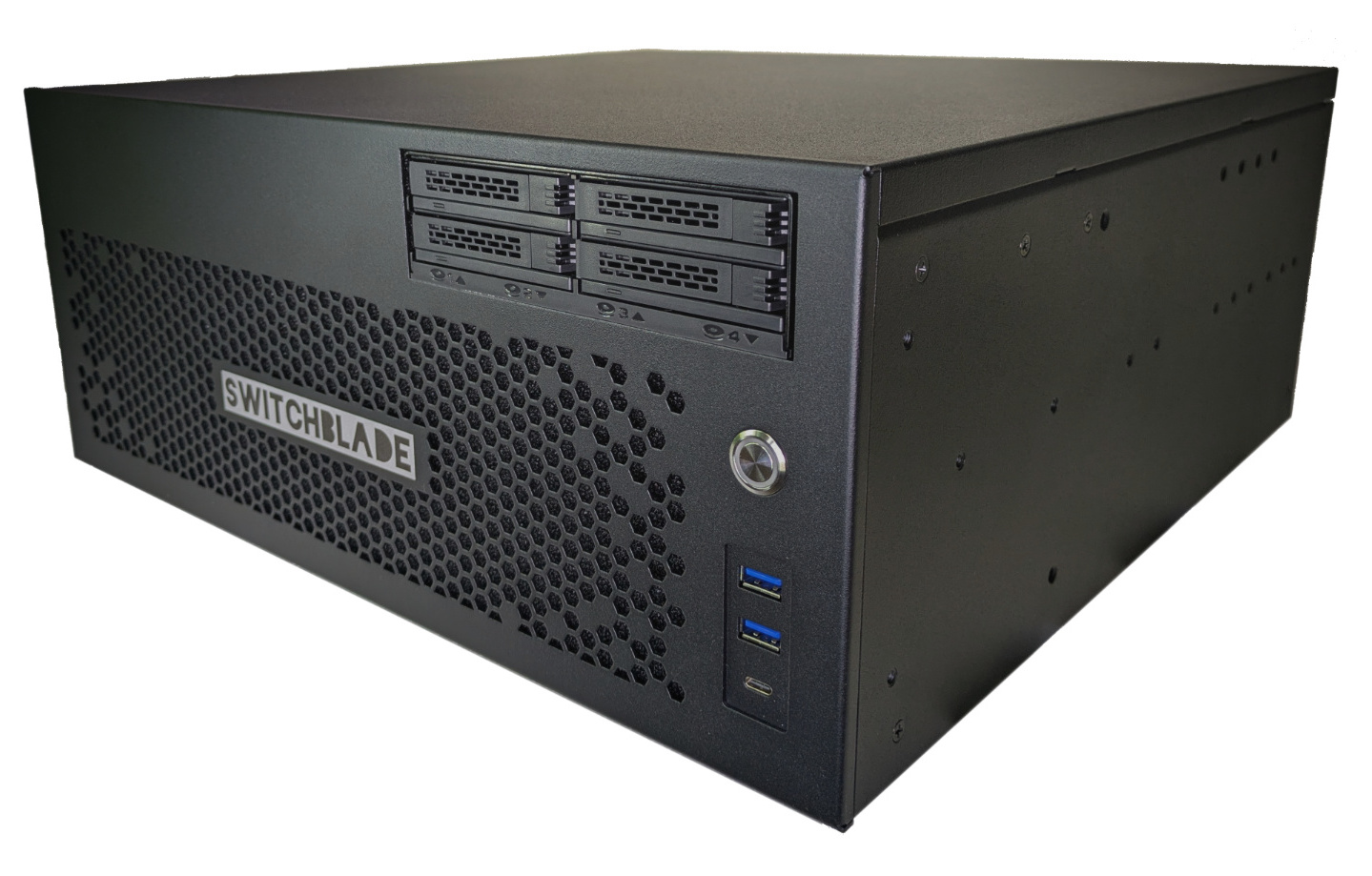

- Rackmount switcher platform
- Up to 24x SDI inputs
- High-end video processing and storage
- Pair with VMC24 or VMC20
