Switchblade
M9
Compact,
Powerful
Desktop
Production
Small, But Powerful

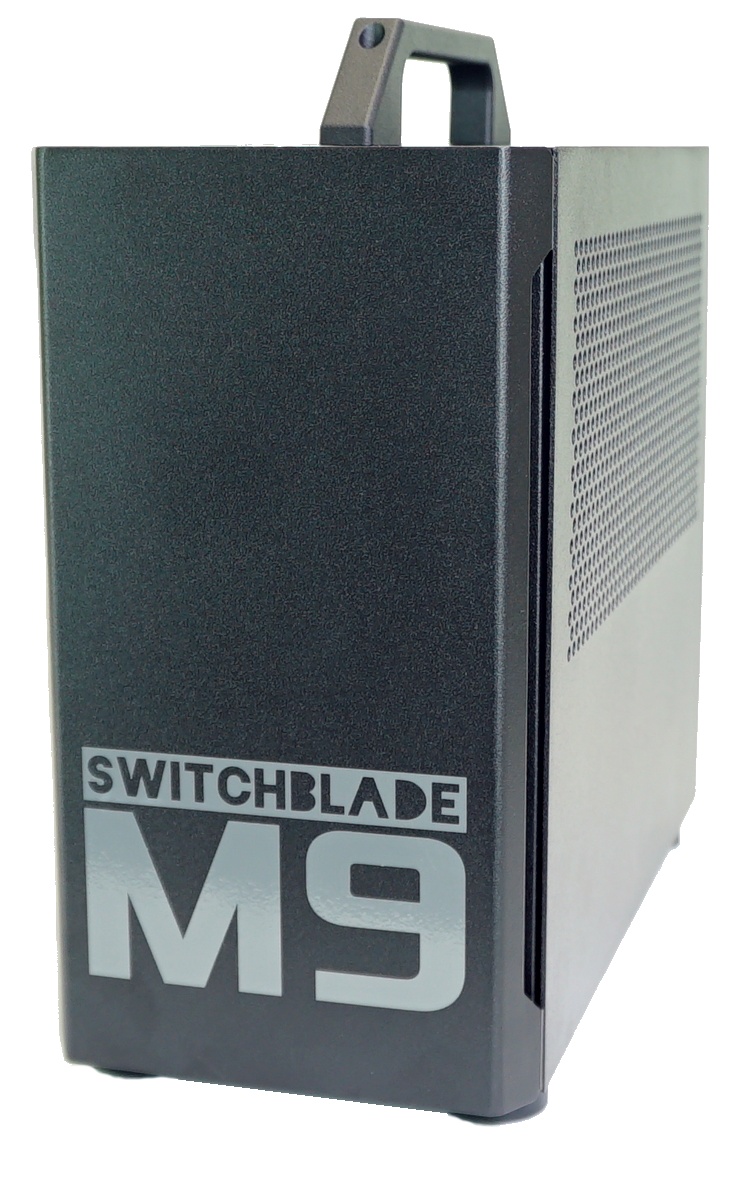

The Switchblade M9 is a compact and portable production switcher running vMix live switching and streaming software.
Whether you want to stream your church worship services, town meetings, sporting events, or virtual conferences, the M9 gives you the best combination of hardware and software to ensure your next event runs perfectly.
Product Highlights
- Compact, portable chassis
- Silent operation
- US-based technical support
- Includes vMix software license
- Up to 4x HDMI or 8x SDI video inputs
- NDI and SRT input and output
- Up to 3 independent streaming outputs
- Graphic overlays, Remote guests, & Replay
Product Gallery
Available Systems
The M9 platform is available two standard configurations: M9 and M9 Pro. Both versions can be customized with many upgrade options, including additional video inputs, SDI I/O, replay, and more.
M9 Models
M9 Pro Models
M9 Series Tech Specs
| Model | M9 4x SDI | M9 4x HDMI | M9 Pro 4x SDI | M9 Pro 4x HDMI |
|---|---|---|---|---|
| Video & Audio Connections | ||||
| Video Inputs/Outputs | 4x 3G-SDI Inputs | 4x HDMI Inputs | 8x 3G-SDI Inputs | 4x HDMI Inputs |
| Audio Inputs/Outputs | 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line out | 2x 1/4" TRS stereo analog audio inputs, 2x 1/4" TRS stereo analog audio outputs, 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line out |
||
| Hardware Specifications | ||||
| Processor (CPU) | Intel Core i5-12600KF | Intel Core i7-13700KF | ||
| Graphics (GPU) | NVIDIA GeForce RTX 3050 | NVIDIA GeForce RTX 4060 | ||
| Memory (RAM) | 16GB DDR5 RAM | |||
| Storage | 1TB NVMe M.2 Solid State Drive (SSD) | |||
| Network | 1x 2.5Gbps Ethernet RJ-45 port, WiFi 6, Bluetooth | |||
| Dimensions | 12.57″ x 6.78″ x 14.09″ (319mm x 172mm x 358mm) | |||
| Software Specifications | ||||
| Included Software | vMix HD | vMix 4K | ||
| Instant Replay | None | Single-camera replay with vMix Replay (included) | ||
| Remote Callers | 1 remote caller with vMix Call (included) | 4 remote callers with vMix Call (included) | ||
| Overlay Channels | 4 channels of overlays | |||
| Recorder | 1 recorder channel | 2 independent recorders | ||
| Streaming Outputs | 5 simultaneous streams | |||
| NDI Inputs | Unlimited NDI inputs (depending on video source and project) | |||
| NDI Outputs | Not included | 4 NDI outputs | ||
| SRT Inputs | Unlimited SRT inputs (depending on video source and project) | |||
| SRT Outputs | 1 SRT output | 4 SRT outputs | ||
| Fullscreen Outputs | 2 additional external monitor outputs form graphics card (HDMI or DisplayPort) | |||
| Titling Software - Standard | GT Designer Standard - Includes 100+ Built-In Animated Titles, Scoreboards, and Tickers | |||
| Titling Software - Advanced | Not included | GT Designer Advanced - Build custom animated titles, including using layered Adobe PSD files |
||
| Color Correction | Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscrope monitoring. | |||
| Playlist | Switch between multiple live inputs or prerecorded videos without manual intervention. | |||
| Video List | Create playlists of video files to play in sequence - a great way to stream prerecorded content when your event is offline. | |||
| Scripting | Not included | Create complex automation with VB.Net and URL scripting. | ||
| PTZ Control | Not included | Control multiple Pan Tilt Zoom cameras directly from the main interface and by shortcut and/or joystick. |
||
| Mix Input | Not included | Add up to 15 additional "mini mixers" that support basic transitions and cuts between two different inputs. |
||
| Vertical HD | Not included | 1920p production toolset, including project presets, safe areas, source rotation, and vertical titles. |
||
| Zoom Integration | 1 input - Receive audio and video from one Zoom meeting | Receive the audio and video from multiple Zoom meeting participants. | ||
| Telestrator | Not included | Draw over any input using a web browser. Display lines, shapes, text, and images to telestrate sports, presentations, and more! |
||
COMPLETE YOUR SOLUTION
Add on other essential production gear to create your custom bundle.
NDI PTZ Camera
- 20X Optical Zoom Lens
- SDI, HDMI, and NDI|HX Outputs
- POE and 12V DC Power
- $995 when purchased with M9
Wireless Tally Lights
- Add tally lights to any Switchblade system
- Compatible with vMix and VMC12 controller (sold separately)
VMC12 Control Surface
- Controls most vMix functions
- POE and 12V DC power
- Directly control up to 12 channels
- Ethernet or USB connection
